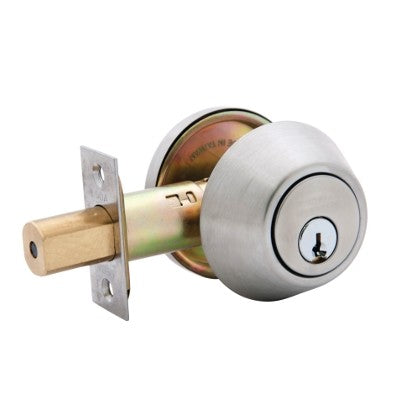

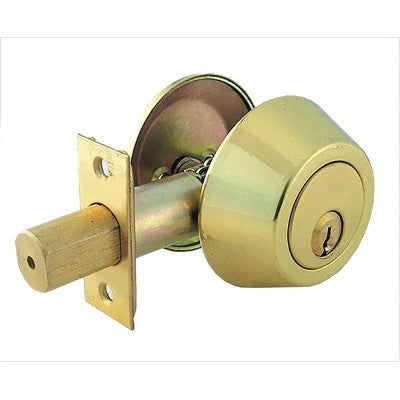

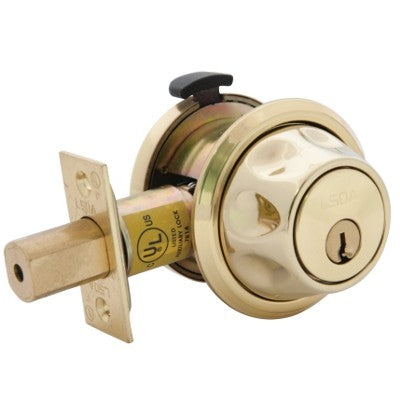

LSDA Grade 3 Deadbolts are designed for standard duty residential exterior and interior doors which require a positive deterrent to forced entry. They have a full 1″ throw deadbolt with hardened steel rod insert, and revolving cylinder collar that resists any attempts at twist-off.
Features:
- Complies with ANSI/BHMA A156.2, Series 4000 Grade 3
- Door Thickness: 1-3/8” to 1-3/4” standard
- Backset: adjustable 2-3/4” or 2-3/8”
- Latchbolt: Full 1” throw deadbolt with hardened steel rod insert
- Handing: non-handed
- Warranty: 15 year limited mechanical warranty, and 1 year finish warranty, Millennium Brass: lifetime finish warranty
- Construction:
Revolving cylinder collar resists any attempt at twist-off
Solid brass one piece cylinder housing
- Cylinder: Schlage “C” 5 pin cylinder, Kwikset 5 pin cylinder, or Weiser 5 pin cylinder
AVAILABLE KEYWAYS:
Schlage "C"
Weiser
AVAILABLE FUNCTIONS:
Single Cylinder Deadbolt
Turning inside turn button, or key on outside, locks outside deadbolt until unlocked with a key or inside turn button. Inside turn button always retracts latch.
Double Cylinder Deadbolt
Both sides of deadbolt fixed. Entrance by key in either side.
Spin-T-Lock Deadbolt
Turning inside turn button, spinning outside cylinder collar, or key on outside, locks outside deadbolt until unlocked with a key or inside turn button. Blocker button inside prevents access by key from outside when button is engaged. Inside turn button always retracts latch.
